基于单片机的多路温度采集系统软件设计(附程序,元件清单)

来源:wenku163.com  资料编号:WK1632828 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9AWK1632828
资料介绍

基于单片机的多路温度采集系统软件设计(附程序,元件清单)(任务书,开题报告,外文翻译,毕业论文9000字)
摘要:   随着现代信息技术的飞速发展,温度测量控制系统在工业、农业及人们的日常生活中扮演着一个越来越重要的角色,它对人们的生活具有很大的影响
温度采集在林业,农业,化工甚至是军工领域都有广泛的应用,因此能否对这些地区的环境温度实现有效的监测。是一个要解决的重要的课题。采用温度传感器构成的电子监控装置是一种较好的解决方案,因此利用Mcs-51单片机系列设计了一个温度采集系统。
数字式多路温度采集系统由主控制器、温度采集电路、温度显示电路、报警控制电路及键盘输入控制电路组成。它利用单片机AT89C51做控制及数据处理器、智能温度传感器DS18B20做温度检测器、LED数码显示管做温度显示输出设备。实现多监测点的温度采集。并且具有显示,报警等功能。能够应用于一般的环境的温度采集环境。

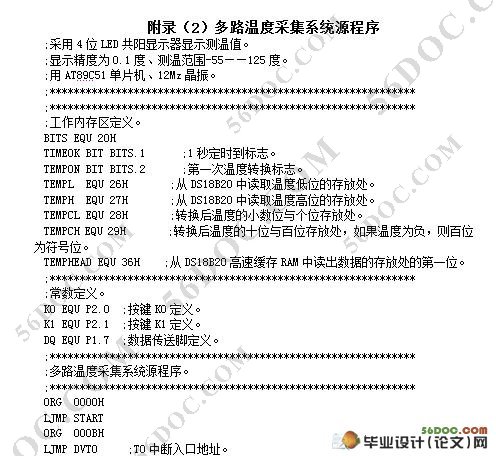

软件设计主要采用汇编语言设计,设计工具用keil,程序主要由键盘扫描子程序,温度转换子程序,读出温度子程序,计算温度子程序,显示数据刷新子程序,报警控制子程序组成。用汇编的主要优点是编程的效率高。适用于简单的但是要求较高的电路。本文主要是采用的是汇编语言设计。.
关键词:温度 传感器 单片机 软件

software design base on SCM multi-channel temperature gathering system
Abstract:With the rapid development of modern information technology,In temperature measurement control system of industrial, agricultural and People's Daily life plays a more and more important role in people's life, and it has very important effect,Temperature gathering in the forestry, agriculture, chemical and even military domain has a wide range of applications,So  effective monitor  the environment temperature of these regions  Is an important task to solve. A temperature sensor constitute electronic monitoring device is a better solution, so use Mcs - 51 SCM series design a temperature gathering system.
the digital multi-channel temperature gathering system by the master control regulator, the temperature gathering electric circuit, the temperature display circuit, reports to the police the control circuit and the keyboard entry control circuit is composed .It makes the control and the data processor, intelligent temperature sensor DS18B20 using monolithic integrated circuit AT89C51 makes the temperature detector, the LED numerical code display tube makes the temperature demonstration output unit. Achieve more monitoring stations in the temperature gathering. And display, alarm functions. Can be used in the general environment temperature acquisition environment.
The software design use assembly language,The design tool adopt keil, Program mainly by the keypad scanning subroutine, the temperature conversion subroutine, read temperature subroutine, the calculation of temperature subroutine, display data refresh subroutines, alarm control subroutines composition.The advantage of the assembly language is high efficiency, and fit for the circuit which simple but require expert . This paper is mainly uses  assembler language

Keyword: temperature  ensor  monolithic integrated circuit  software

毕业设计(论文)使用的原始资料(数据)及设计技术要求:
基于单片机的多路温度采集系统主要用于采集多个监测点的温度,当某个监测点
的温度超过一定的范围时进行报警。基于单片机的多路温度采集系统主要完成以下功
能:单片机外围电路、温度采集模块、数码显示模块和报警模块。主要指标为:温度
误差<0.5℃。该课题完成系统的软件设计,主要要求如下:
1.主程序:控制程序流程。
2.温度采集模块:控制系统的温度采集。
3.数码管显示模块:控制数码管显示采集到的温度和湿度。
4.报警模块:当温度超过一定范围时,发出报警信号。
5.完成一篇英文技术资料的翻译。

数字式多路温度采集系统具有温度采集、显示、简单的人机对话及报警功能。它的测温范围宽(-55~+125℃),测量精度可通过编程调节,最高精度可达到0.0625℃/LSB。
本系统主要是适用于采集显示温度,不具备控制调节温度功能。但能够进行硬件和软件功能扩展。在硬件扩展后,通过软件编程实现控制功能扩展。例如当环境温度达到一定值时,通过软件编程进行判断,从主控制器的一个I/O端口输出一个控制指令,去驱动外部的控制电路工作,从而调节环境温度,使环境温度达到人们所需的要求。
本文给出了利用单片机进行温度测量智能化控制的方法,对基于51单片机温度控制的原理及结构进行了系统的论述,本系统利用的是用单片机实现的高精度实用性温度测量仪,以89c51单片机为核心研究和设计了数字化温度控制系统,给出了系统硬软件控制的各部分系统的电路,测量仪具有使用简单,成本低,工作可靠等优点。在环境监测中有一定的应用前景。

基于单片机的多路温度采集系统软件设计(附程序,元件清单)
基于单片机的多路温度采集系统软件设计(附程序,元件清单)
基于单片机的多路温度采集系统软件设计(附程序,元件清单)
基于单片机的多路温度采集系统软件设计(附程序,元件清单)
基于单片机的多路温度采集系统软件设计(附程序,元件清单)
