电机机座钻孔组合机床的设计
来源:wenku163.com 资料编号:WK1633775 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9AWK1633775
资料介绍
摘 要
(一)电机机座钻孔组合机床是大型组合机床,它的配置型式具有固定式液压夹紧的单工位组合机床,这类组合机床夹具和工作台都是固定不动的,动力滑台实现进给运动。滑台上的动力箱实现切削运动,根据工件结构特点,以及精确要求,采用结合面为定值基准面。 在基准面对应的另一圆柱面上,用压块压紧,由于结合面的加工精度较高,以它为基面,完全可以达到要求的加工精度。

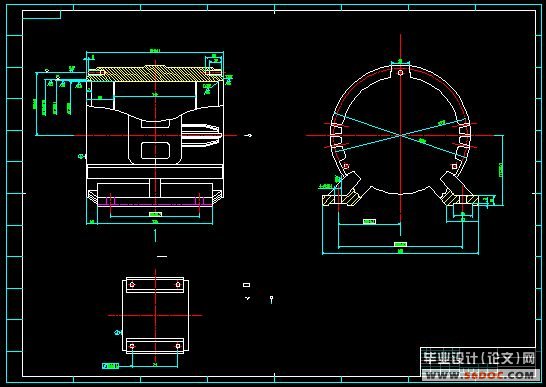

(二)几何机床总体设计----三图一卡①“被加工零件工序图”它是组合机床的设计的主要依据,它是制造使用,检修和调整机床的重要技术条件②绘制加工示意图,它是刀具夹具,多轴箱,液压电器装置设计及通用部件选择主要原始资料,它是调整机床,刀具及试车依据。③绘制联系和运动关系及检验机床各部件相对于位置及联系是否满足加工要求,通用部件的选择是否合适,并为进一步开展主轴箱,夹具等专用部件,零件的设计提供依据。④相对生产率计算卡,它用来反映机床的加工过程,完成这一动作所需要的时间,切削用量,机床生产率及机床负荷率。

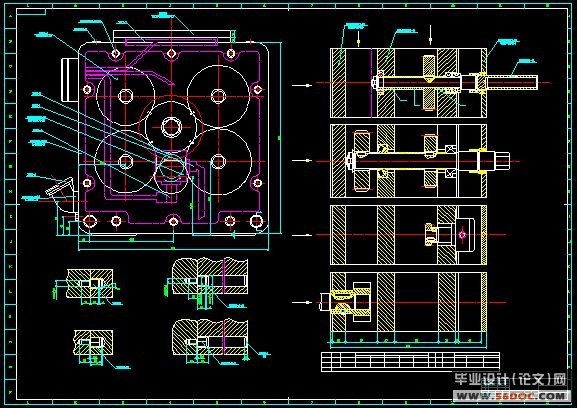

(三)组合机床主轴箱设计,按专用要求进行设计,由通用零件组成,其主要作用是根据被加工零件的要求,安排各主轴位置并将动力和运动由电机或动力部件传给各主轴,使之得到要求的转速,机床主轴箱选用400*400,用中间传动轴带动主轴传动。

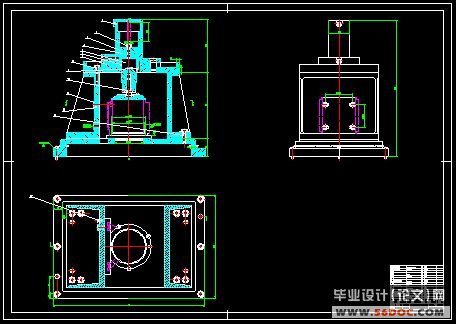

(四)夹具设计
在前述定位基准面选择的前提下,用摆动式压板杠杆夹紧结构,夹紧力经验算可以保证。
以上设计内容是本设计要求独立完成的部分,设计顺序按设计任务速度,计划表工作量完成1号图3张,0号图2张,设计说明书译文各一份。
SUMMARY
(一) Single-face heriZontol
Combmtvin drilling machine is a large combination machine it adept a dispose form. The form has a fixed fitture’s single working location combination.
This kind of combination machine fitture and working bench are all fixed. Powen-sliding plat makes advam cry mourent. The power box on the power sliding plat from made scatting movement.This comgination and agle in instuit and is comvenient in desxging making and operating .Acording to precision demerd it adopt a datum place fixed in side .It is lined light with après lump on the other lylinder side against the datum palne .Itcan read working prelistion indemard a wording to the datum plane. Bacause of it is high working precision in side besides it has a round hole in high precision in side. It has a threaceling hole on the ohassion.
It can make full use of the strulture charactlst of the work piece. To design two short round cancel in the round hole in the side. To limit three degrees .To design acutside cancel on the bassface the battom. To limit one free degree. To limit three free degree one the deofimtine datum plane.It definet up a ccnrately and it’s fixture power is depene.
(二)To desing the combination machine body-therr draning and one carcl that is ① the working orther draning of the working spares . it’s the major basis of the combination maching body. It’s a important paper in making using excmining and rensing maching .②To draw working schematw. Drawing it’s for design a cutting tool. Assist tool afixture a multiple axle box hydravlive,pressure and a deetric capacity derise and important first hand date of the natirrad. Pants chovced and it’s a rewse machine kinf tool and the mgor basis for the test run.③ To draw the relation dimension drawing the relation dimension drawing is to impress the matual .assembly nelation and the motin redation of the each form spanes of the machine.in order to enamine the relative .Pustion of all the machine spares and if the dimersion nelational .Spares is fix ,in the disigerents of dere loping the main axle box fixtrer’s special purpose pats.④Todesign the machin productirilg planning card .It’swod to report the working process of the machine to finish the need tine the cutting capacity the machine producticity and machine’s rate for the cach activity.
(三)To design the comuination machine main axle box .To design it a cocording to the special cemoncl.It’s made up of the mational pants.As magin use is to arrange the position of all the mational axle box and transrnit the power and the motion to all the main axle by the electrical machinery or the power pants .According to the working demands of the worked pants and make it taget the demand transpont speed.The machine main axle is mode in side 400*400. It’sdraved by the mediwm drive.
(四)To desing the fixture
First to choice the forer word fixed position datum plane.It’s fixed by swing depressor fixtume structure the despower can be assured by checking computations.
Above all,the design ments is the indepent part of this desing ment devnand .The design order is made according to the programme suface of the desing task cuel the raste of progress the work amout will be finished in two preces of draning paperl three pieces of draning paper one piece of .
目录 11000字
1、前言
2、拟定机床总体设计方案
3、组合机床总体设计
4、夹具设计
5、组合机床的优缺点
6、参考资料
|
