切管机的设计

来源:wenku163.com  资料编号:WK1633233 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9AWK1633233
资料介绍

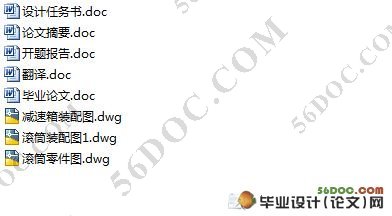

切管机的设计(含任务书,开题报告,论文说明书10000字,cad图纸)

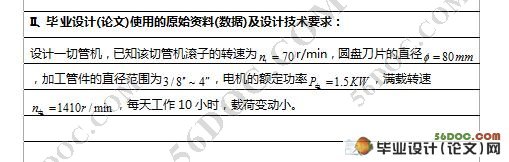

摘要:切管机主要用于加工各种用途的管件,主要包括各种材料的金属管件,本次设计的切管机所加工的管件主要是直径在3/8″~4″之间。

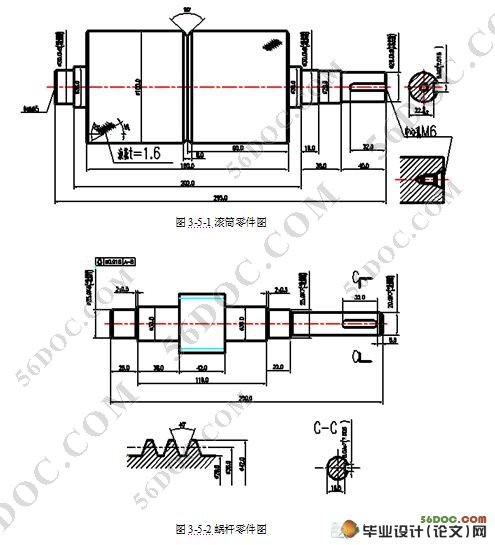

本论文设计的切管机,完成的工作主要是切管机中减速箱、滚子、机体等的设计。其中包括确定工艺方案、传动装置的设计和计算(包括电动机的选择、拟定传动方案、各轴转速、功率和转矩的计算、传动机构的设计与计算等)。在对上述各项进行了详细的强度校核之后,根据已有的经验公式,确定了各个零件之间的相互尺寸。在最后绘制出了装配图、部件图以及部分零件图
本文设计所完成的切管机主要用于车间中对管件的切屑加工,对于提高生产效率,减轻工人的劳动强度有着积极的意义。

关键词:切管机  传动件  设计计算

The design of tube cutting machine
Abstraction: Tube cutting machine mainly being used in processing various functional tube parts ,primarily includes varieties material`s  metals tube parts . This time  the designed  Tube cutting machine essentially process the tube parts which diameter between 3/8"~4".
The task of this time designed Tube cutting machine is chiefly  comprises the design and of deceleration case , roller ,organism, and so on.  Besides, the task also includes  the others several steps,such as :settle the technology craft program;the design and calculation of transmission installation ; (includes the selection of electric motor ; formulate the transmission program; the rotational speed of each axle; power and the calculation of Torque ; the  design and calculaton of the transmission mechanism etc).  After  detailed intensity proofread  for all kinds the above--methioned , according to the already experienced--formula, the mutual dimension among each components being fixed .  Finally ,  draw the assemble chart; components chart as well as portion  spare parts chart.
The designed Tube cutting machine  mainly used on cutting and processing for tube  part in the work shop  .  To some extent, the design has positive significance  in improving productivity and lightening the workers labor intensity.

Key words:   tube cutting machine    transmission parts        design     calculation

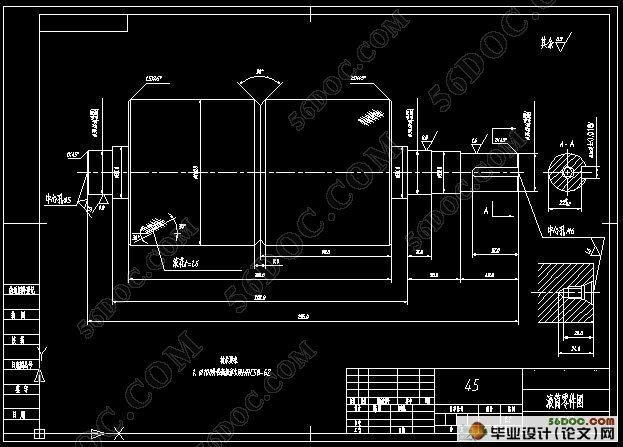

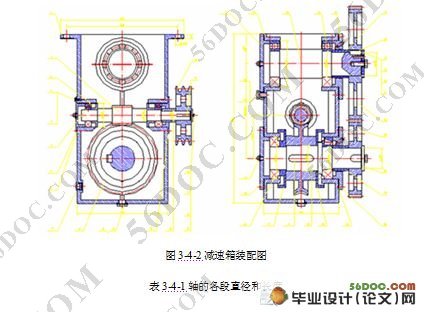

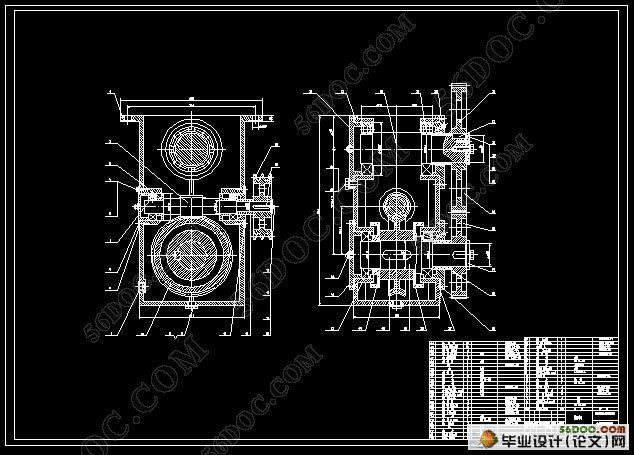

本次设计的切管机主要是针对各种用途金属管材进行加工。本次设计的任务主要是对切管机中减速箱及有关零件进行的设计。其中包括传动装置的设计和计算。总体结构的设计以及对设计计算进行校核。并且通过得到的数据,绘制总体装配图,减速机装配图,减速箱焊接图等。然后又针对各主要基本件,绘制了多张零件图
本次设计的切管机为减轻工人的劳动强度,提高生产效率有着积极的意义。

切管机的设计
切管机的设计
切管机的设计
切管机的设计
切管机的设计
切管机的设计
