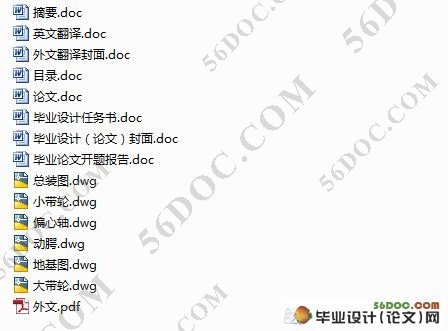

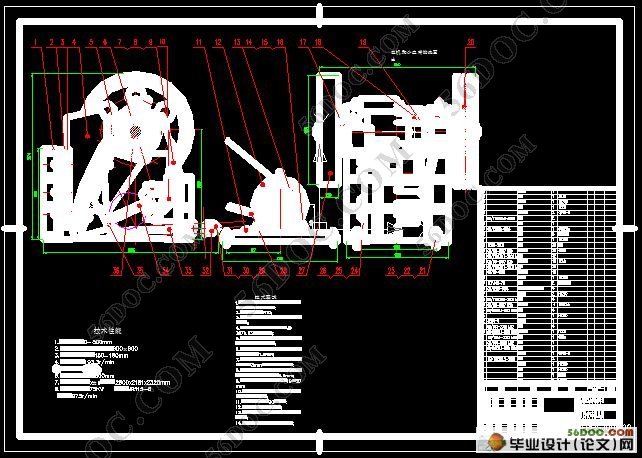

复摆腭式破碎机的设计(含任务书,开题报告,论文说明书15700字,外文翻译,cad图纸)
摘要：腭式破碎机在工矿企业被广泛的应用，这是因为该机构结构简单、机型齐全并已大型化。腭式破碎机经过100多年的实践和不断改进，其机构已日臻完善。虽然腭式破碎机算的上比较老的机型了，但是随着社会的发展需求破碎的要求不断提高，对产品和产品的质量也大大的提高了，破碎机的机型已经发展到很多种了。

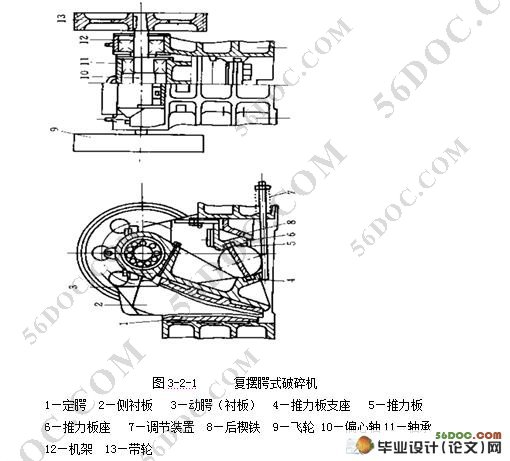

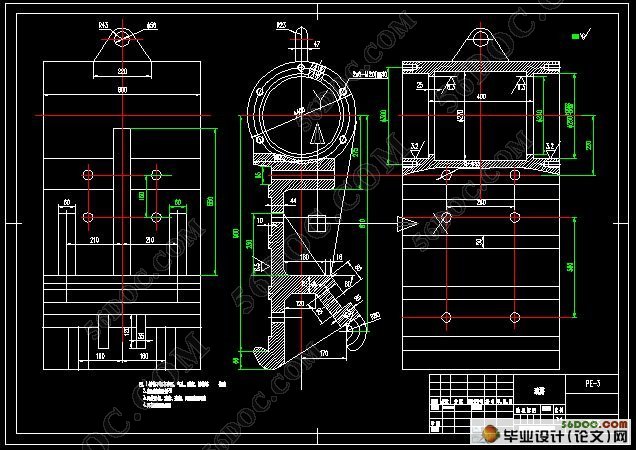

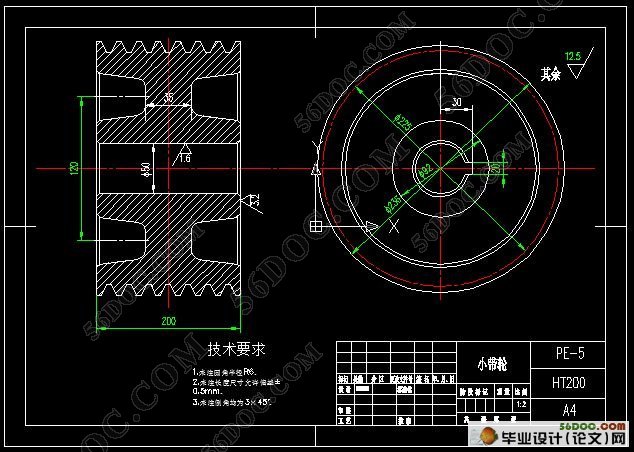

本文主要是对复摆腭式破碎机设计研究。复摆腭式破碎机是因为其动腭在其它机件的带动下作复杂的一般平面运动而得名，其动腭上的轨迹一般为封闭曲线。复摆破碎机由于偏心轴负荷大一般制成中型和小型的，其破碎比可达10。随着工业技术的发展和要求，复摆腭式破碎机已经向大型化发展。复摆腭式破碎机在工作时偏心轴作逆时针旋转，对所装入的物料有向下退并夹持作用。该机型垂直摆幅下大上小，有利于出料口处动腭将成品推出。由于整块动腭作复杂运动因此对物料块不但起挤压、劈裂、弯折作用，还能起碾搓作用，故可破碎稍微粘湿的物料。采用正支撑复摆腭式破碎机，动腭下部的特性值m很大，使得动腭和定腭的衬板磨损很快，但却具有较高的生产能力。由实际生产说明，正支撑式腭式破碎机的结构形式具有动腭轨迹分布合理、生产能力高、结构更简单等优点，使其得到广泛应用。
关键词：破碎比 动腭 正支撑 特性值
Compound pendulum palate crusher design
Abstract: Palate crusher in the industrial and mining enterprises were widely used, this is because the body structure is simple, and complete and large-scale models of. Palate crusher after 100 years of practice and continue to improve, their bodies have been improving. Although the palate crusher count on the relatively old models, but with the social development needs of the requirements broken constantly improve the products and the quality of the products have greatly improved, the crusher models have been developed to a variety .
This paper is facing compound pendulum palate crusher design study. Compound pendulum palate crusher because of its dynamic palate in other parts of the lead plane for the general sports complex named after. Moved palate its trajectory is generally closed curve. Crushing machine-placed eccentric axle load due to the generally made of medium-sized and small, broken up over 10. With the development of industrial technology and demands placed palate-breakers have been large-scale development. Compound pendulum palate crusher at work for the eccentric shaft counterclockwise rotation, the load of materials and a retreat clamping downward effect. The models under a vertical swing on small and is conducive to moving the material I will be refined palate launched. As block palate for complex dynamic movement of materials therefore not only blocks from the extrusion, Split, bending role, but also from the roller rubbing role, it can be slightly broken stick wet materials. Support is facing a complex palate crusher, moving the lower part of the palate of great value m, making dynamic palate and the palate of liner wear very quickly, but it has a high production capacity. From the actual production that are supporting-palate structure of the Breakers palatine form a dynamic trajectory of a reasonable, high-capacity, the advantages of a simpler structure, it is widely used.
Key Words: broken up ratio moved palate be prop up eigenvalue
毕业设计(论文)使用的原始资料(数据)及设计技术要求：

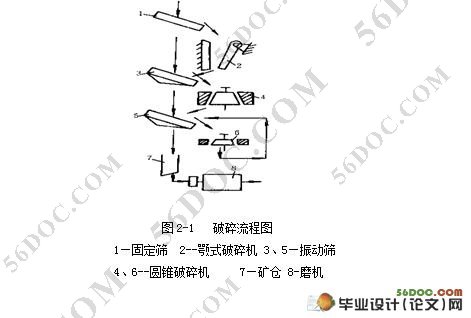

腭式破碎机具有破碎比大、产品粒度均匀、结构简单、工作可靠、维修简便、运营费用经济等特点。鄂式破碎机广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业
等众多部门，破碎抗压强度不超过320兆帕的各种物料。
1. 所需破碎的物料中等硬度,堆积密度:1.35 t/m3
2. 生产能力约为70 m3/h
3. 进料口尺寸：600×900；
4. 进料最大粒度：Dmax=500mm
|
