Abstract
The all metal forming methods in stamping forming is one of the important forming method is very suitable for soft materials of metal forming and for the complex precision components can be a stamping molding. This topic design is fastening parts stamping process and die structure design. High school learn mold related knowledge and stamping process as the basis, reasoned and explained the cold stamping die design process.

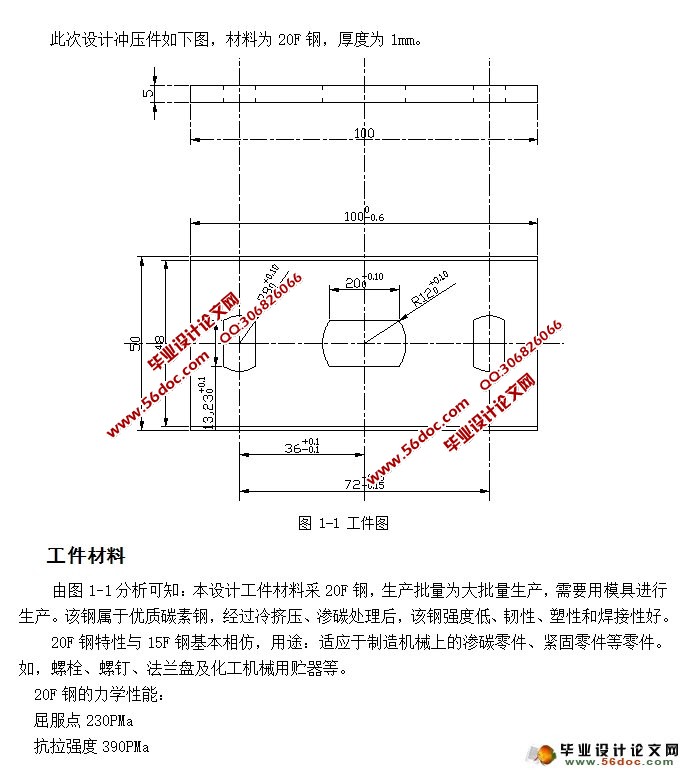

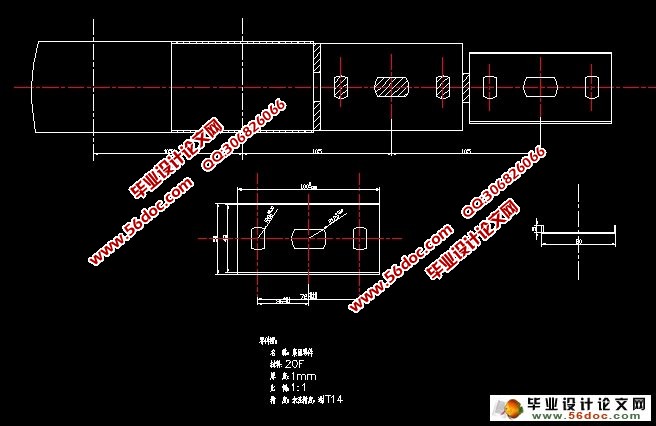

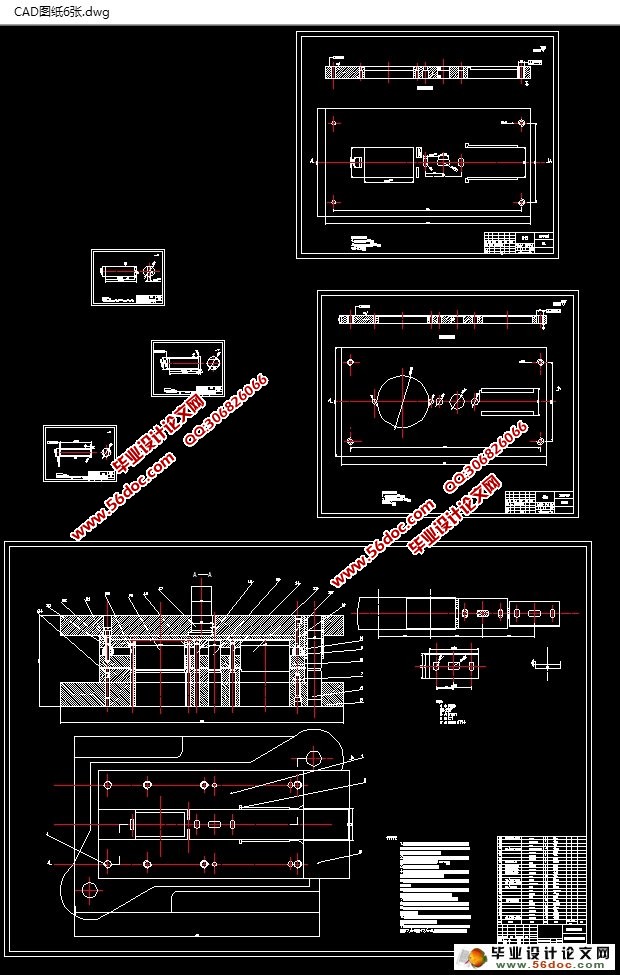

In the design of the selected workpiece using progressive die stamping. Drawing on the workpiece and die assembly drawing using AutoCAD software, in the design to the design train of thought clear, but also in the stamping forming process and each specific parts are to be detailed calculation and verification. So as to ensure that at the end of the design of mold can work reliable. Finally to draw the mold assembly drawings and some standard parts size precision figure.
Through the design of the workpiece stamping die work, not only to consolidate and deepen the knowledge of the university four years of knowledge, and achieved satisfactory results, to achieve the desired design intent.
